Product Details:

The Globe Valves are primary used to modulate or regulate the volume of the flow, a Globe Valve is not recommended when a continuous full flow of fluid is required due to the high pressure drop inherent to the design of a Globe Valve. The disc of globe valve can be plug type, needle type or parabolic type, globe valves are on/off valves, but sometimes they are utilized in throttling service, globe valves are widely used for the medium of water, steam, oil product, nitric acid, acetic acid, oxygenation, etc.

Applicable Standard
Design Standard: BS 1873, ASME B16.34, DIN3356
Face to Face: ASME B16.10, EN 558, DIN 3202
End Flange: ASME B16.5, DIN 2543-DIN 2548, EN 1092-1
Butt welding Ends: ASME B16.25, DIN3239
Inspection and Test: API 598, DIN3230

Products Range
Size: 2" ~ 14"(DN50 ~ DN350)
Rating: ANSI 150lb ~ 1500lb, PN10~ PN250
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Operation: Hand wheel, Gear, Electric, Pneumatic

Design Features
Straight pattern body design
OS&Y, outside screw and yoke
Needle, parabolic, or plug disc
Renewable or welded seat
Bolted bonnet, back seal structure
Impact hand wheel for 6" and above

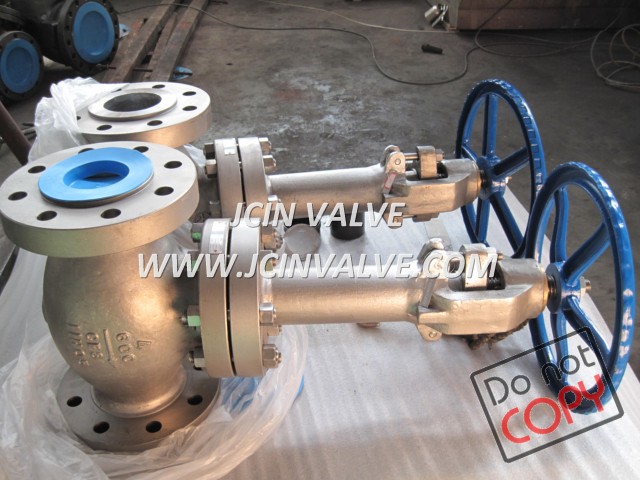

Extended stem design for low temperature
Locking devices is available
