Product Details:

The Globe Valves are primary used to modulate or regulate the volume of the flow, a Globe Valve is not recommended when a continuous full flow of fluid is required due to the high pressure drop inherent to the design of a Globe Valve. The disc of globe valve can be plug type, needle type or parabolic type, globe valves are on/off valves, but sometimes they are utilized in throttling service, globe valves are widely used for the medium of water, steam, oil product, nitric acid, acetic acid, oxygenation, etc.

Applicable Standard
Design Standard: API 602, BS5352
Face to Face: ASME B16.10
End Flange: ASME B16.5
Inspection and Test: API 598

Products Range
Size: 1/2" ~ 2"(DN15 ~ DN50)
Rating: ANSI 150lb ~ 2500lb
Body Materials: A105,LF2,F9,F11,F22,F304,F304L,F316,F316L,F321,F51 etc.
Operation: Hand wheel

Design Features
Outside screw & Yoke (OS & Y)
Standard or Full Port

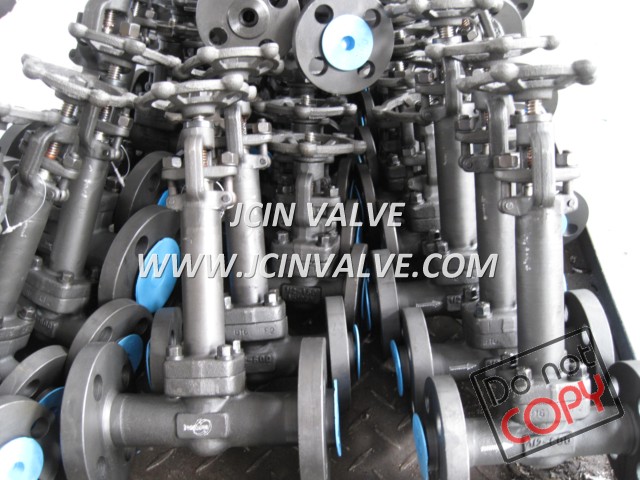

Extended stem for Cryogenic service
Integral flange or welding flange options
Bolted Bonnet, Welded Bonnet or pressure seal options
