Product Details:

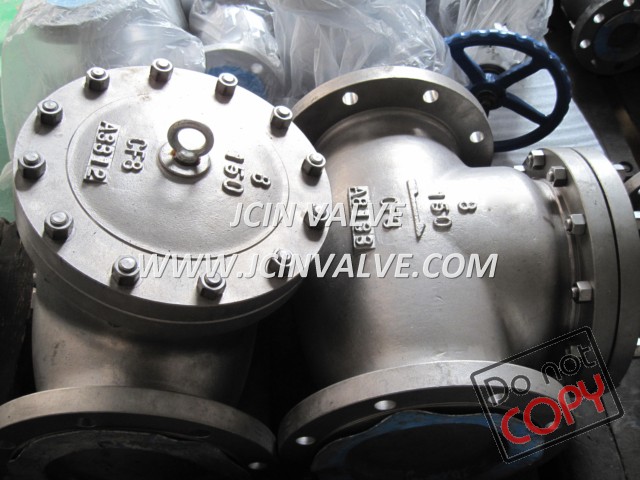

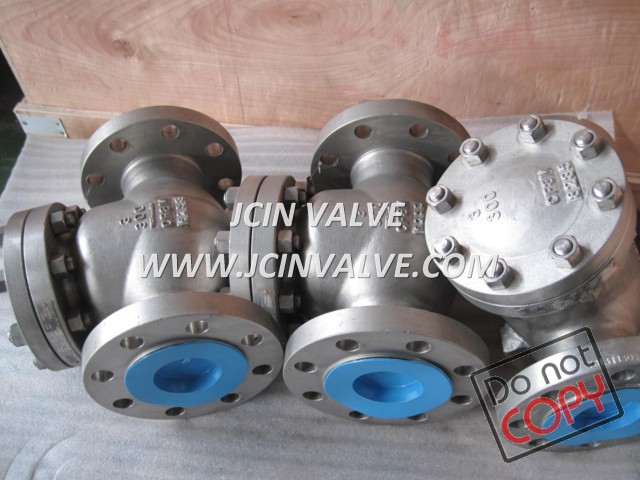

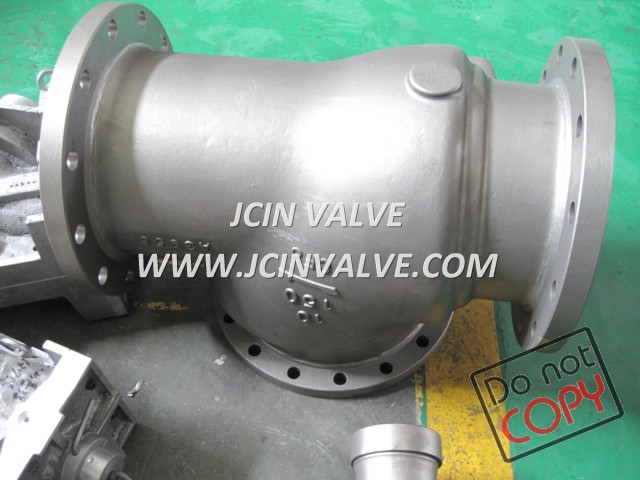

Check valves are generally used to protect pumps or similar equipment, allowing the flow only in one direction and preventing flow reversal due to back pressure. The swing type check valves are designed to produce a low pressure drop in the pipeline. This design provides a tight seal as well as a fast reaction to the closure. Check valves are mainly used in the application of water, steam, oil, crude petroleum and petroleum products, and other nonaggressive fluids.

Applicable Standard
Design Standard: BS 1868
Face to Face: ASME B16.10
End Flange: ASME B16.5, ASME B16.47
Butt welding Ends: ASME B16.25
Inspection and Test: API 598

Products Range
Size: 2" ~ 36" (DN50 ~ DN900)
Rating: ANSI 150lb-2500lb
Body Materials: CF3, CF8, CF3M, CF8M, A890 4A, A890 5A, CN7M, Monel etc.

Design Features
Standard port or Full port
Bolted cover.
Swing type disc design
Threaded or welded seat
Flanged or butt welding ends Optional dashpot device
